This is a versatile outdoor patio heater designed for both warmth and ambiance. It features a classic umbrella-shaped design and supports both natural gas and propane options. Customizable with an adjustable height function, it can also double as a fire pit for a cozy outdoor experience.
Power Source: AC (Alternating Current)
Timer Function: No timer
Rated Power: 13,000W
Heating Method: Far-infrared heating
Coverage Area: Approximately 30㎡
商品説明

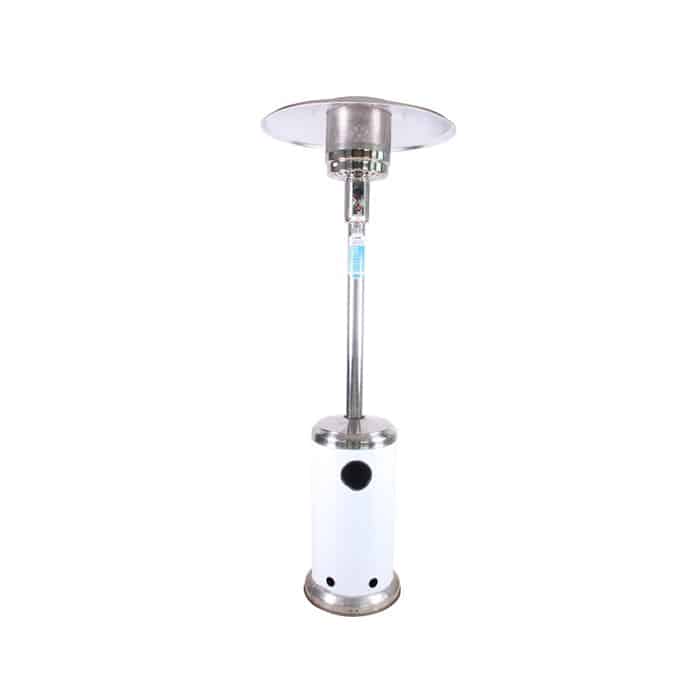

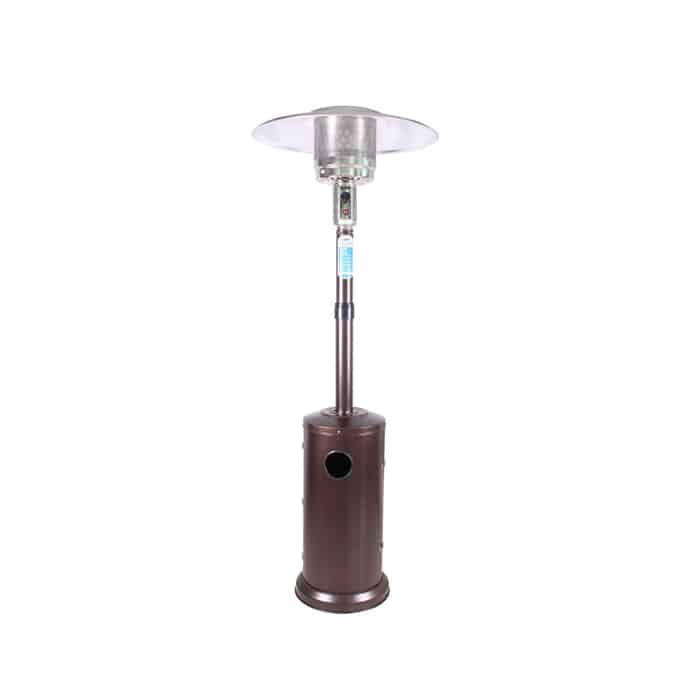

This patio heater, also known as an umbrella heater, is typically available in both gas and electric models. Named for its umbrella-like top design, it is primarily used for outdoor heating. It is widely applied in settings such as gardens, terraces, cafes, restaurants, bars, hotels, and other venues, especially during colder seasons to maintain a comfortable outdoor temperature.
Safe/fast/environmentally friendly
What are the advantages of the top umbrella design?
The umbrella-shaped design can reflect and evenly distribute heat, heats up quickly, is suitable for large areas, and improves the heating effect.
How to install a gas patio heater?
First step
Fix each of the three support rods to the base using three M8x15mm screws, securing one screw at each designated position.
ステップ2：
Connect the support tube and the three support rods together using six M6x35mm screws and 6mm diameter nuts.
ステップ3：
Place the barrel cover vertically as shown in the image.
ステップ4：
As shown in the image, assemble the reflector cover by connecting it with nine screws and nuts.
ステップ5：
Place three 8mm diameter (20mm outer diameter) washers onto the support screws on the burner, one washer on each screw.
Step 6:
Place the reflector cover onto the burner and secure it by fastening three M8 nuts and washers, connecting the reflector cover to the burner.
Step 7:
First, connect one end of the rubber hose to the burner using a seamless steel pipe. Then, use four M6x10mm screws (removed from the burner) to secure the burner and support tube together.
Step 8:
Rotate the gas valve counterclockwise to connect it to the gas cylinder, and tighten it with a wrench. Connect the pressure regulator and rubber hose using a seamless steel pipe, then attach it to the gas cylinder.
Patio heater usage recommendations
For Indoor Use:
The heater releases water vapor during operation to prevent dryness and is equipped with an oxygen depletion safety feature. It is recommended to open a window for ventilation every one to two hours to ensure proper airflow.
For Outdoor Use:
No additional ventilation is required. Simply place the heater in a stable, secure location to prevent tipping over.
Triple Safety Protection for Peace of Mind
Flame-out protection, tip-over protection, and oxygen depletion protection ensure a safer and more reliable heating experience.
Fire-off protection
If the patio heater shuts off for any reason, the thermocouple will stop generating an electric current. In the absence of current, the solenoid valve will automatically close the gas supply, cutting off the fuel flow. To relight the heater, reset the control switch and follow the ignition procedure again.
Anti-dump protection
If the unbrella heater experiences impact, vibration, or tipping while in operation, the built-in tip-over protection switch will immediately activate, cutting off power to the solenoid valve. This will close the gas supply line, automatically shutting off the heater. To relight, reset the control switch and follow the ignition procedure again.
Hypoxia protection
Before the oxygen level in the air drops to a point that affects normal breathing, the flame will detach from the thermocouple. This causes the thermocouple to stop generating an electric current. In the absence of current, the solenoid valve will automatically close the gas supply, shutting off the heater. To relight, reset the control switch and follow the ignition procedure again.
